2BV5111 High Quality 230m3/h Liquid Ring Vacuum Pump 380V 50HZ





201203091015185428



Main features

1, The direct-coupled design is easy installation and can save space
2, The bearings are all the Japanese NSK.
3, The standard configuration uses the John Crane mechanical seal which can eliminate leakage and easy to maintain.
4,The pump has the cavitation protection port, when it works under the ultimate pressure, the cavitation protection port opens (or connects with the separator) in the case of ensure maximum suction effect to eliminate the noise of cavitation and protect the pump
5,2BV whole series are all use the aluminum bronze impeller with high strength and raise its corrosion resistance and durability. If the liquid flows parts adopt stainless steel, the pump can work in the more hard condition.
6, Special flexible the exhaust port can avoid over-pressure and ensure the best efficiency within the range of its performance.
7, All motors are all adopted Y2 series products. The protective grade is IP54 or IP55 (common is IP44), the insulation grades is F(common is B).
8, 2BV series Liquid ring vacuum pump can bring soft seal parts are all PTFE which can last its workable life under the more harsh environments.

9, Stable Operation and noise can low to 62 decibel.

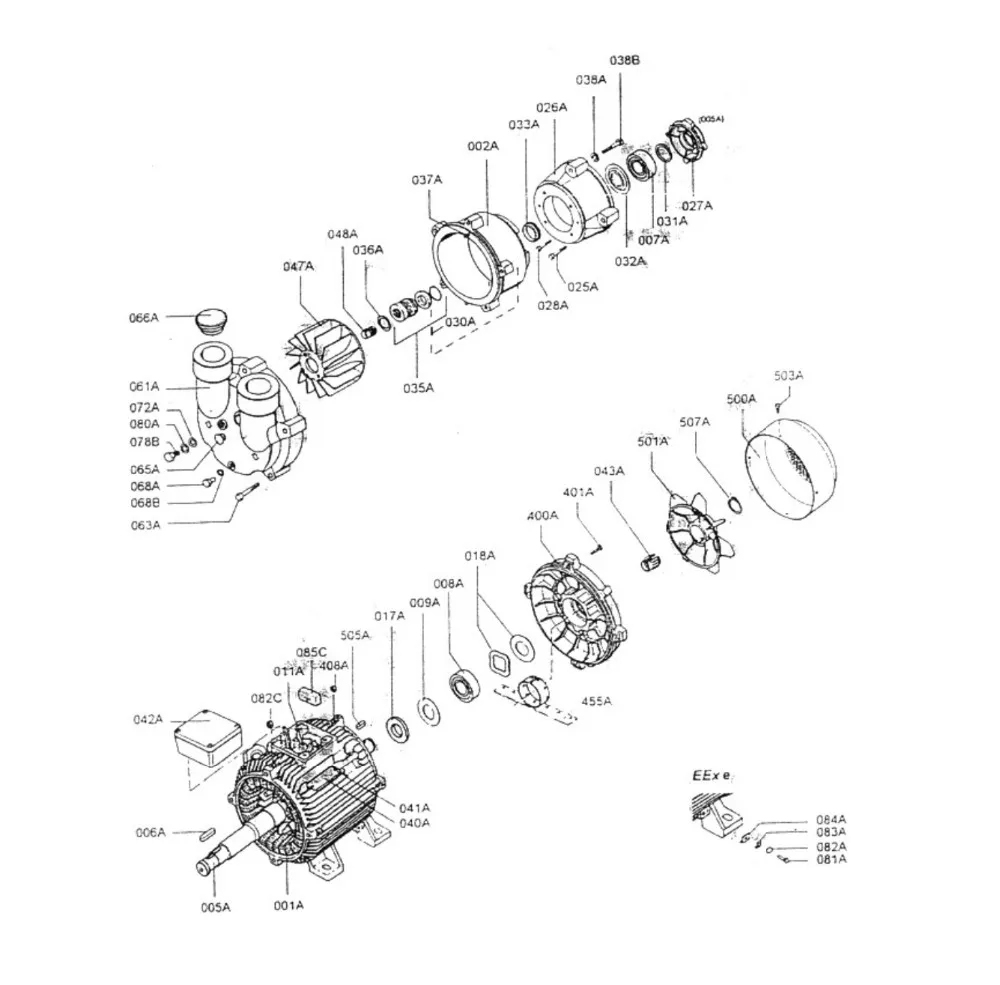

vacuum decomposition map and accessories
